MFR070D-BW2

​​​​​​​​​​​​​​＊Size: 7.0inch LCD
＊Resolution 800RGB x 480
＊View Direction: 12 o'clock
＊Interface : RGB
＊Brightness(cd/m²): 250
＊Top: -20~70℃
​​​​​​​＊Tst: -30~80℃​​​​​​​
＊Touch Panel : Without Touch Screen
Content

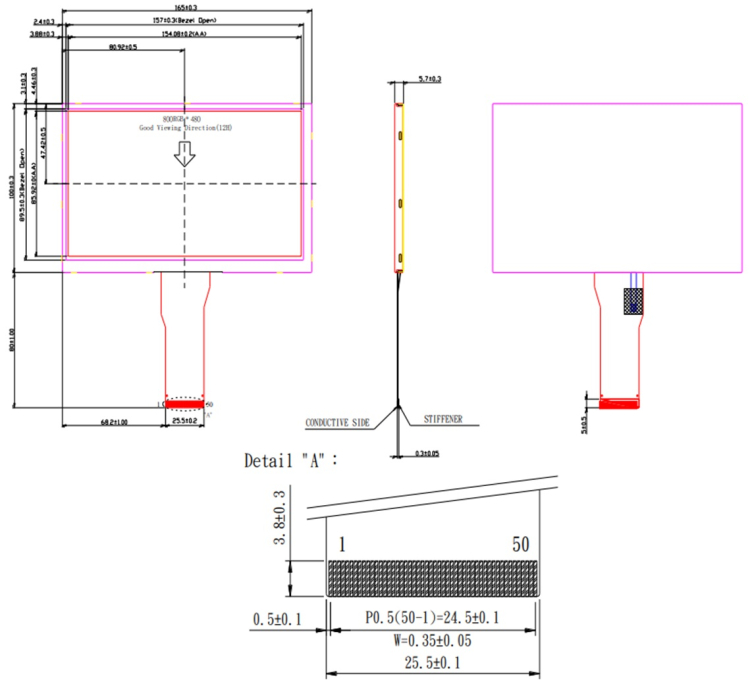

  • Item Dimension
     Size  7.0 inch
     TFT Model  a-Si TFT,Normally White ,Transmissive
     Resolution  800RGB*480
     Dot Pitch  0.1926*0.179 (mm)
     Active Area  154.08W*85.92H (mm)
     Outline Dimension  165.0W*100.0H*5.7D (mm)
     Good Viewing Angle  12 o’clock
     Aspect Ratio  Landscape
     Backlight Type/Brightness  LED,  Norimally White , 250cd/m2
     Interface  RGB
     With /Without TP  Without TP
Related File
MFR070D-BW2
