Item | Dimension | ||||||
Size | 7.0 inch | ||||||
TFT Model | a-Si TFT,Normally Black ,Transmissive | ||||||
Resolution | 1024RGB*600 | ||||||
Dot Pitch | 0.1506*0.1432 (mm) | ||||||
Active Area | 154.2144W*85.92H (mm) | ||||||

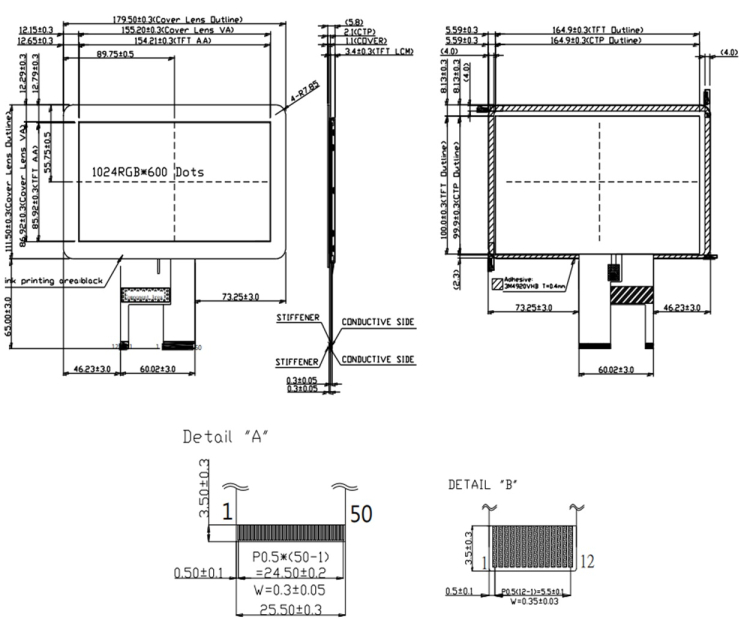

Outline Dimension | 179.5W*111.5H*5.8D (mm) | ||||||
Good Viewing Angle | Free | ||||||
Aspect Ratio | Landscape | ||||||
Backlight Type/Brightness | LED, Norimally White , 750cd/m2 | ||||||
Interface | MIPI | ||||||
With /Without TP | CTP(I2C) |
